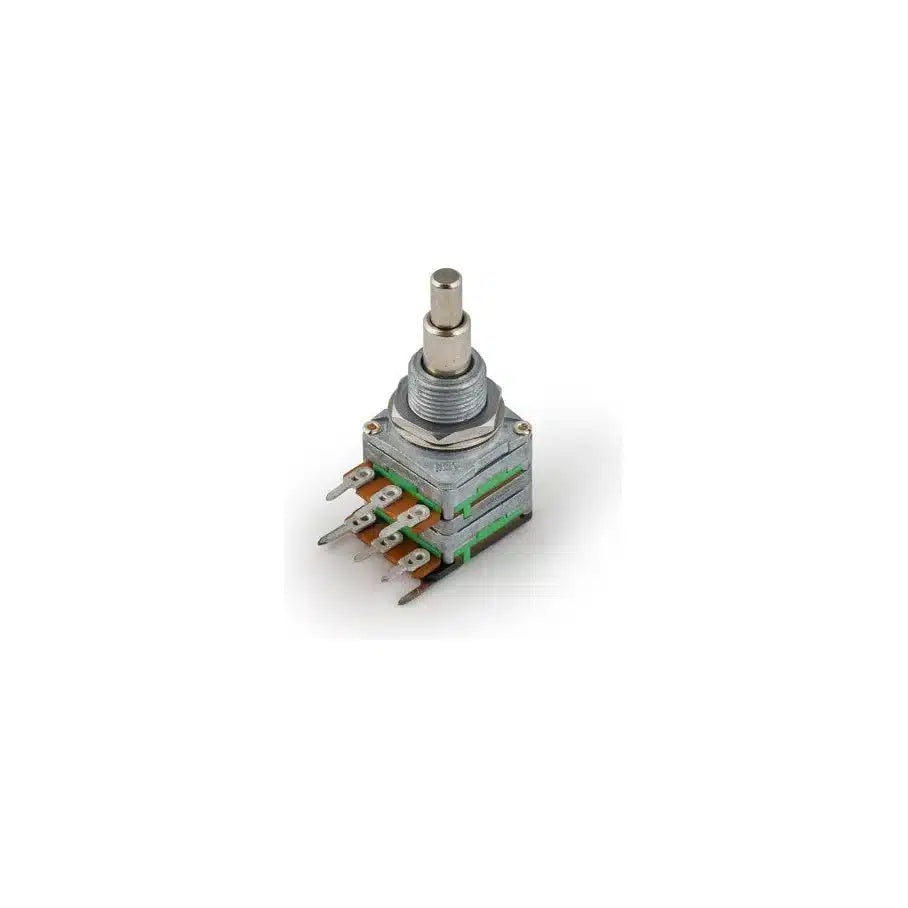

Warwick / MEC B100K Volume Push-pull pot assembly M85110

Warwick / MEC B100K Volume Push-pull pot assembly M85110

$58.00 USD
$58.00 USD
Sale Sold out

B100K
  • Dual mono stacked potentiometer
  • Concentric shaft
  • R1 = B100K (resistance 100 kOhm, (B) linear)
  • R2 = B100K (resistance 100 kOhm (B) linear)
  • Center detent
  • Suitable for use as bass + treble control for active electronics
  • M10 x 0.75 mm threads
  • Mounting diameter 10 mm
  • Thread length 9 mm
  • Solid shaft
  • Shaft length 14 mm (inner), 7 mm (outer)
  • Shaft diameter 4 mm (inner), 6 mm (outer)
  • Incl. nut and washer
  • Dimensions incl. lugs (L x W x H) 24 x 16 x 17 mm
